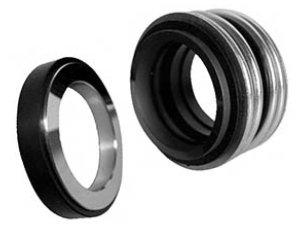

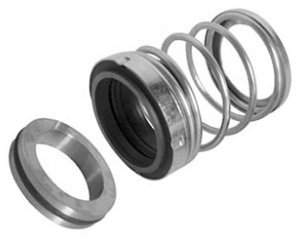

RI-101 / RI-102

These type Rubber Seal is generally used in sewage applications, waste water pumps & fuel injection pumps.

Materials
Seal Faces: Si / Carbon Vs Ceramic / Si.
Secondary Seals: Niton / Viton / EPDM
Metal Parts: SS-304, SS-316, SS-316L

Operating Limits
Shaft Dia: 10mm to 100mm
Pressure: 10 Bars (max)
Temperature: -20°C to +150°C

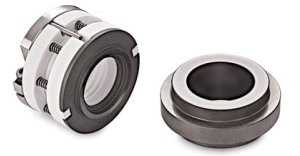

RI-201 / RI-202

These type Teflon Bellow Seal is generally used in acids, alkalis & extremely corrosive services.

Materials
Seal Faces: GFT / Si / Carbon Vs Ceramic / Si
Secondary Seals: PTFE / GFT
Metal Parts: SS-304, SS-316, SS-316L / Hastelloy

Operating Limits
Shaft Dia: 16mm to 100mm
Pressure: 5 Bars (max)
Temperature: -20°C to +90°C
Speed: 2900 rpm (max)

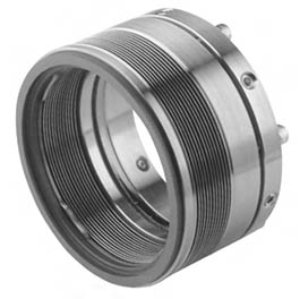

RI-301 / RI-302

These type Welded End Metal Bellow Seal is generally used for handling highly corrosive high temperature applications.

Materials
Seal Faces: Carbon / Si / TC Vs Si / TC
Secondary Seals: Viton / PTFE / GFT
Metal Parts: SS-304, SS-316, SS-316L / Hastelloy "C"

Operating Limits
Shaft Dia: 19mm to 100mm
Pressure: 15 Bars (max)
Temperature: -50°C to +350°C
Speed: 3200 rpm (max)

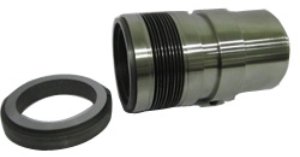

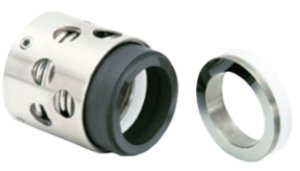

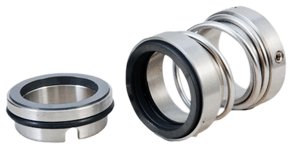

RI-401 / RI-402

These type Single Spring Seal is generally used in high pressure pumps, refineries, fertilizers, nuclear plants & petroleum products.

Materials
Seal Faces: Si / Carbon Vs Si / Ceramic / TC
Secondary Seals: Viton / PTFE / GFT
Metal Parts: SS-304, SS-316, SS-316L

Operating Limits
Shaft Dia: 10mm to 150mm
Pressure: 10 Bars (max)
Temperature: -50°C to +180°C
Speed: 1500 rpm (max)

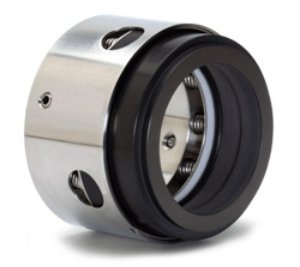

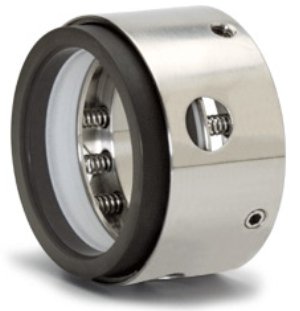

RI-501 / RI-502

These type Multi Spring Seal is generally used in ash slurry pulp, clinker grinder, sludge & syrup.

Materials
Seal Faces: Si / Ceramic / Carbon TC Vs Ceramic / TC / Si
Secondary Seals: Elastomers / FEP / PTFE / GFT
Metal Parts: SS-304, SS-316, SS-316L

Operating Limits
Shaft Dia: 10mm to 150mm
Pressure: 10 Bars (max)
Temperature: -50°C to +180°C
Speed: 1500 rpm (max)

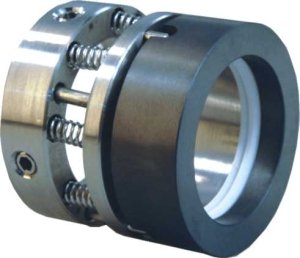

RI-601 / RI-602

These type Multi Spring Seal is generally used for handling corrosive chemicals, hydrocarbons, general & light chemicals.

Materials
Seal Faces: Si / Carbon / TC Vs Ceramic / TC / Si
Secondary Seals: Viton / FEP
Metal Parts: SS-304, SS-316, SS-316L

Operating Limits
Shaft Dia: 20mm to 100mm
Pressure: 10 Bars (max)
Temperature: -50°C to +180°C
Speed: 2900 rpm (max)

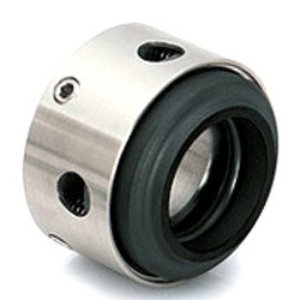

RI-701 / RI-702

These type Multi Spring Seal is generally used for handling corrosive chemicals, hydrocarbons, general & light chemicals.

Materials
Seal Faces: Si / Carbon / TC Vs Ceramic / TC / Si
Secondary Seals: Viton / FEP
Metal Parts: SS-304, SS-316, SS-316L

Operating Limits
Shaft Dia: 20mm to 100mm
Pressure: 10 Bars (max)
Temperature: -50°C to +180°C
Speed: 2900 rpm (max)

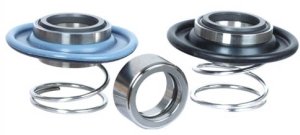

RI-801 / RI-802

These type Textile Seal is generally used in Dyeing & Printing Textile Machineries.

Materials
Seal Faces: Si / Carbon / TC Vs Ceramic / TC / Si
Secondary Seals: Viton / EPDM
Metal Parts: SS-304, SS-316, SS-316L

Operating Limits
Shaft Dia: 14mm to 150mm
Pressure: 10 Bars (max)
Temperature: -50°C to +280°C
Speed: 2900 rpm (max)

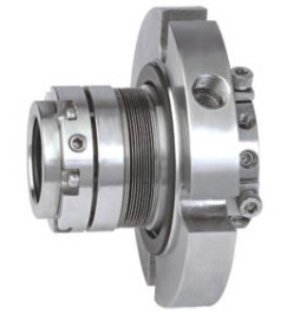

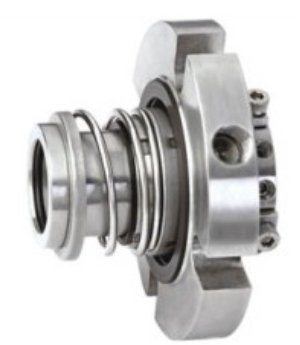

RI-901 / RI-902

These type Cartridge Seal is generally used in chemicals, solvents, hydrocarbons & petrochemicals.

Materials
Seal Faces: Si / Carbon / TC Vs Ceramic / TC / Si
Secondary Seals: Viton / PTFE / GFT / Niton
Metal Parts: SS-304, SS-316, SS-316L, Hastelloy

Operating Limits
Shaft Dia: 25mm to 100mm
Pressure: 15 Bars (max)
Temperature: -40°C to +180°C
Speed: 2900 rpm (max)

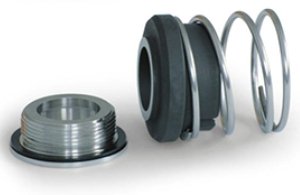

RI-1001 / RI-1002

These type Alfa Level Seal is generally used in hot & cold water pumps, oil pumps refrigiration compressor & fuel injection pumps.

Materials
Seal Faces: Si / Carbon Vs Ceramic / TC / Si
Secondary Seals: Viton / Niton
Metal Parts: SS-304, SS-316

Operating Limits
Shaft Dia: 10mm to 100mm
Pressure: 10 Bars (max)
Temperature: -20°C to +150°C
Speed: 2500 rpm (max)

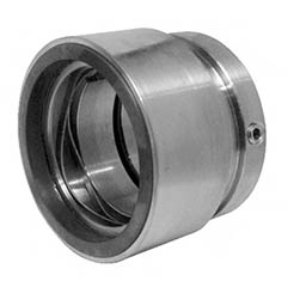

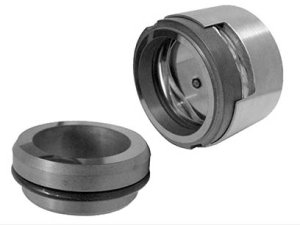

RI-1101 / RI-1102

These type Wave Spring Seal is generally used in paper industries, petrochemicals & petroleum refineries.

Materials
Seal Faces: Si / Ceramic / Carbon Vs Ceramic / TC / Si
Secondary Seals: Viton / FEP / Grafoil
Metal Parts: SS-304, SS-316, Grafoil

Operating Limits
Shaft Dia: 25mm to 150mm
Pressure: 15 Bars (max)
Temperature: -50°C to +180°C

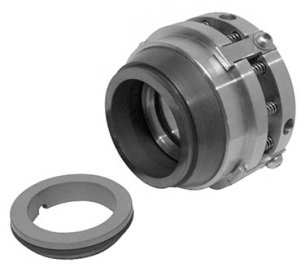

RI-1201 / RI-1202

These type Wave Spring Seal is generally used in refineries, fertilizers, nuclear plants & petroleum pipelines.

Materials
Seal Faces: Carbon / TC / Si Vs Ceramic / TC / Si
Secondary Seals: Viton / PTFE / GFT
Metal Parts: SS-316, 904L, Alloy 20, Hastelloy

Operating Limits
Shaft Dia: 16mm to 150mm
Pressure: 10 Bars (max)
Temperature: -50°C to +280°C
Speed: 2900 rpm (max)

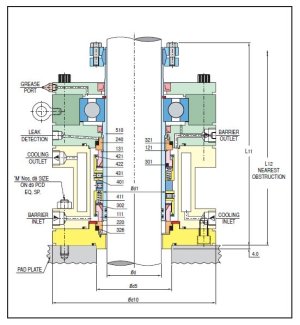

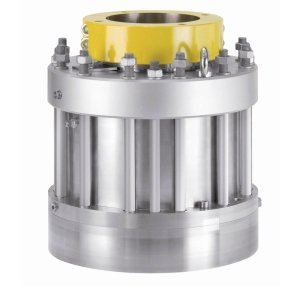

RI-1301 Glass Lined Reactor

Operating Limits
Shaft Dia: 40mm to 140mm
Pressure: 10 Bars (max)
Temperature: -50°C to +180°C
Speed: 200 rpm (max)

Ceramic Sleeve as a special feature

RI-1302 S. S. Reactor

Operating Limits
Shaft Dia: 25mm to 150mm
Pressure: 35 Bars (max)
Temperature: -50°C to +280°C
Speed: 200 rpm (max)

Double back to back seals
Inbound / outbound balanced Cartridge Construction

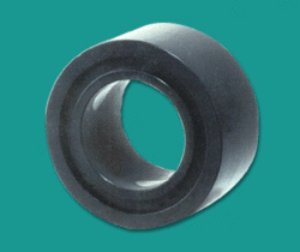

CFT Seal Ring & Guide Bush
Carbon filled TEFLON Seal Ring & Guide bush for Rotary Joint are excellent for Paper Manufacturing Industries.

Pressure withstand : 15 kg/cm2
Temp. withstand : 320°C

We also make steam straps and other CFT parts for paper Industries which are more efficient than conventional carbon items.

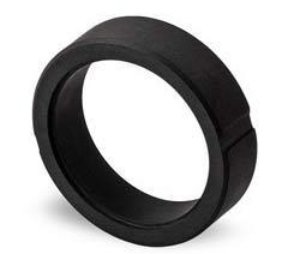

CFT Split Bush - CFT Bush With Key

Carbon filled Teflon Split Bush is made as per customer specification and drawing. This Bush are made in Two Halves which are identical in Measure. They offer better wear & tear tolerance. This Bush are highly used in Paper Industries Carbon filled Teflon Bush with S.S. key are used in Paper Mills. The key is of S.S. which are fitted in Paper Mills Machines.

Graphite Products

Features: We manufacture the graphite products from untainted graphite without any inclusion of binders or fillers.
Gland Packing Rings
Graphite Sheets
Spiral Wound Gaskets

Application: High Temperature Liquids

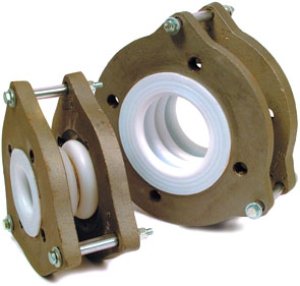

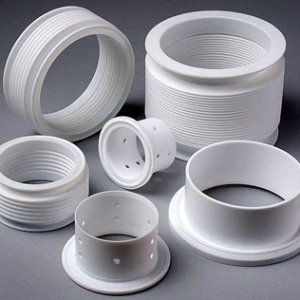

P.T.F.E Teflon Bellows

PTFE Teflon bellows are used in glandless valve and pump installations where they act as shut-off, volume control and sealing elements, mostly with fibreglass-reinforced bottom plates or cones and with moulded in threaded steel bushes size available are from 12mm to 250 mm & from 50 mm to 350 mm in height.
